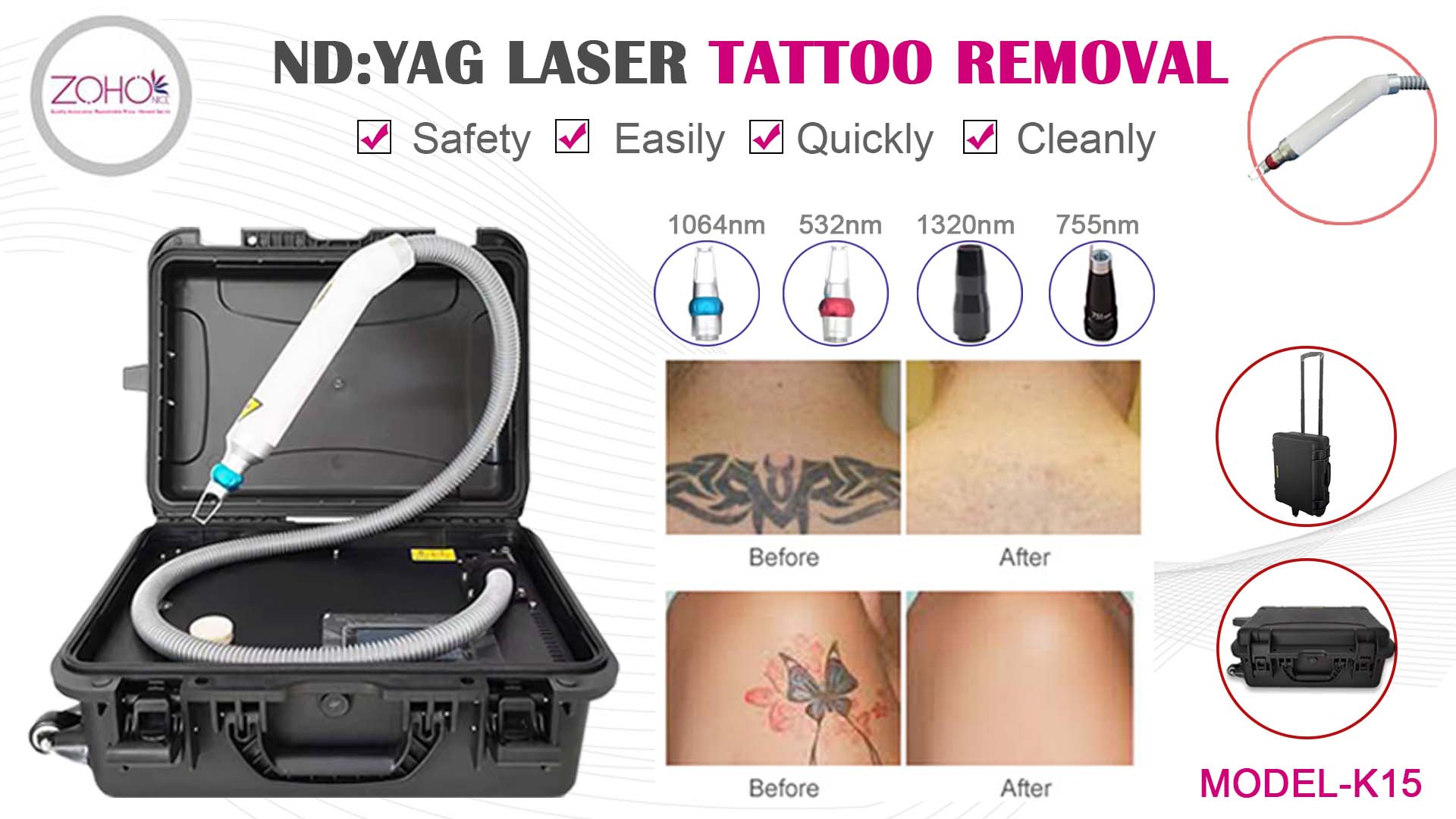

Mini Sapphire Ruby Q Switch Nd yag laser 532nm 1064nm 1320nm
Remover All Color Tattoo Removal Machine,
Treatment range
532nm can remove the superficial pigment in the area of eye round,
such as birthmark, nevus of Ota, Coffee spot, red color tattoo and
vascular lesions, erythema mole. More suitable for dark skin color.
755nm used for skin whitening, remove yellow skin
1064nm can remove the derma layter pigment in the face and body,
sucha birthmark, nevus of Ota, coffee spot, blue and black color
tattoo.1320nm Professional for skin rejuvenation and face deep cleaning ,
blackhead removal, skin tightening and whitening, skin ejuvenation.
Working Theory
The Qswitched Nd: YAG laser delivers light of specific wavelengths
with high energy which are absorbed by the pigment in the tattoo
and result in a shockwave. The shockwave shatters the pigment
particles, releasing them from their encapsulation and breaking
them into fragments
small enough for removal by the body. These tiny particles are then
eliminated by the body. Since this specific wavelength can only be
absorbed by pigment particles, no injury to skin and normal
tissues.
Features
1,with high homogeneity of light spots, uniform energy
distribution, consistency of treatment effect, and more secure.
2,For all exogenous and endogenous pigments, the effect is more
significant
3,Short pulse width, with a dedicated laser bar in the industrial
field, higher peak power, crushing pigment more thoroughly.
honeycomb spot, reduce pain, skin damage is more slight.
4,Intelligent water temperature control system: Avoid water
temperature is too high, damage the handle.
5,The unique shape design and color match make the product more
beautiful and fashionable.
Specifications
Technical Standard | Light Source | Sapphire + Ruby Q-switches |
Energy Density | 100 - 2000 adjust |
Wave Length | 1064nm & 532nm&1320nm |
Power Supply | AC220V/50Hz or AC110V/60Hz |
Pulse Width | <25ns |
Facular Diameter | 1mm - 10mm |
Repeat Frequency | 1Hz - 10Hz |
Cooling System | Winding Cooling Water Cooling Semi-conductor Cooling System |
Instrument Standard | Outer Dimension | 55*40*14cm |
Inner Dimension | 48*39*27cm |
Gross Weight | 14KG |
Net Weight | 15KG |
Working Condition | Conduct Temperature | 5 - 25 |
Relative Humidity | ≤70% |
Shipping Store | Temperature | 20 - 55 |
Relative Humidity | ≤90% |
Working Mode | The working time should be controlled less than 40 minutes every
time and then stop for 20 minutes. |
FAQ
1.How long about your Warranty?
12 month for host machine, Lifelong Maintenance Service
2. Once the machine have any malfunction during the operation, how
to do?
Please rest assure if you met such problem, because ZOHONICE has a
professional after-sale
service team which can reach you immediately and solve the
machine’s problem within 1-3 days.
For details, please contact with us freely
3.If the machines broken during the shipment, how to do?
Generally there will be transportation insurance in the shipment,
once there is any damage
during the transportation, ZOHONICE will help you to solve the
claims with the insurance companies
to collect your money back in time.
Technical service
We have 1 year warranty, 2 year update warranty and lifetime
maintence
•Within 1year, if there is some accessory going wrong, we will send
you the accessory at once, free of charge.
•Within 1month, if the machine is of any big fails, we will send
you a new machine.
•Within 1year, if you send back the equipment for repair, we will
be responsible for the repair, including the changes of the
accessories, both of them are free of charge.
•After 1year, we offer to repair the machine, but we require for
the cost of the changed parts, not for manual cost.
•No responsibility for man-made destroy.
•If the buyer has any questions from our technical department, we
can supply on-line service.
